What is AthleticSB?

Introduction

AthleticSB allows timers to display professional in-person scoreboards at any screen size without the hassle of creating a scoreboard from scratch. AthleticSB scoreboards have a purpose, such as a "Live Track Results" or "XC Summary" board. We display the data and give timers expert-level customization options.

Download AthleticSB now >

View Changelog >

How it works

Open AthleticSB, log in with your AthleticNET credentials, create a scoreboard, and send data to it. It's that simple.

Data is sent to AthleticSB in various formats depending on the kind of scoreboard you want to use. See each board's documentation to learn more about how to use each board. Most boards accept data directly from AthleticLIVE. As long as you have an internet connection, you can show data on your scoreboard. Some scoreboards also accept data from local sources, such as FinishLynx. This is helpful if internet is problematic.

Scoreboards can be opened in two ways. For any board, you can click "Start" to open the board on the local computer. Or, if you're using online data, you can click "Open in Browser" to open the board in a browser at a URL you can share with others. It's also possible to copy the link or open a QR code to scan.

Scoreboards

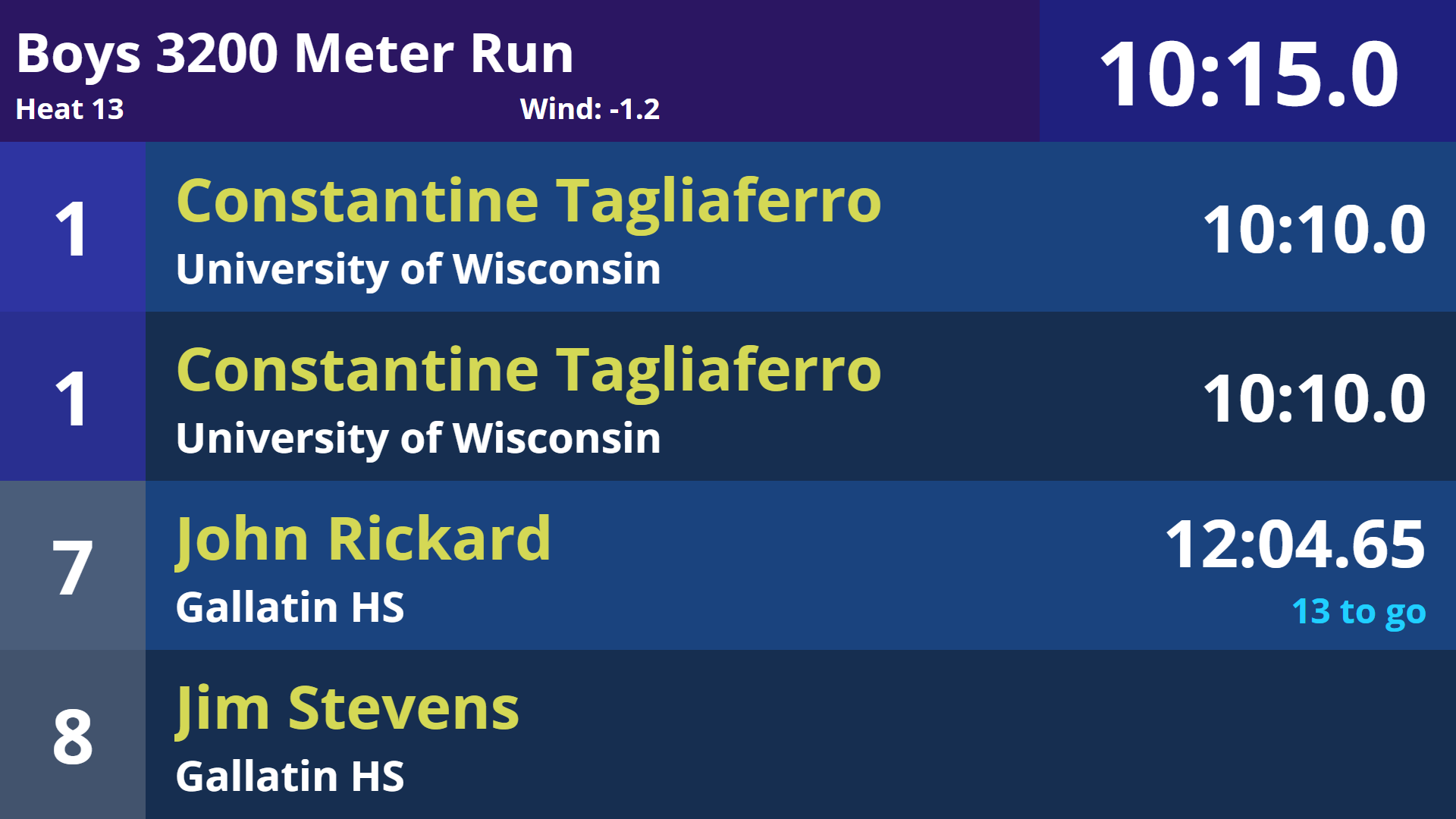

Live Track Standings

Display running time, entries, and results from FinishLynx. Read More >

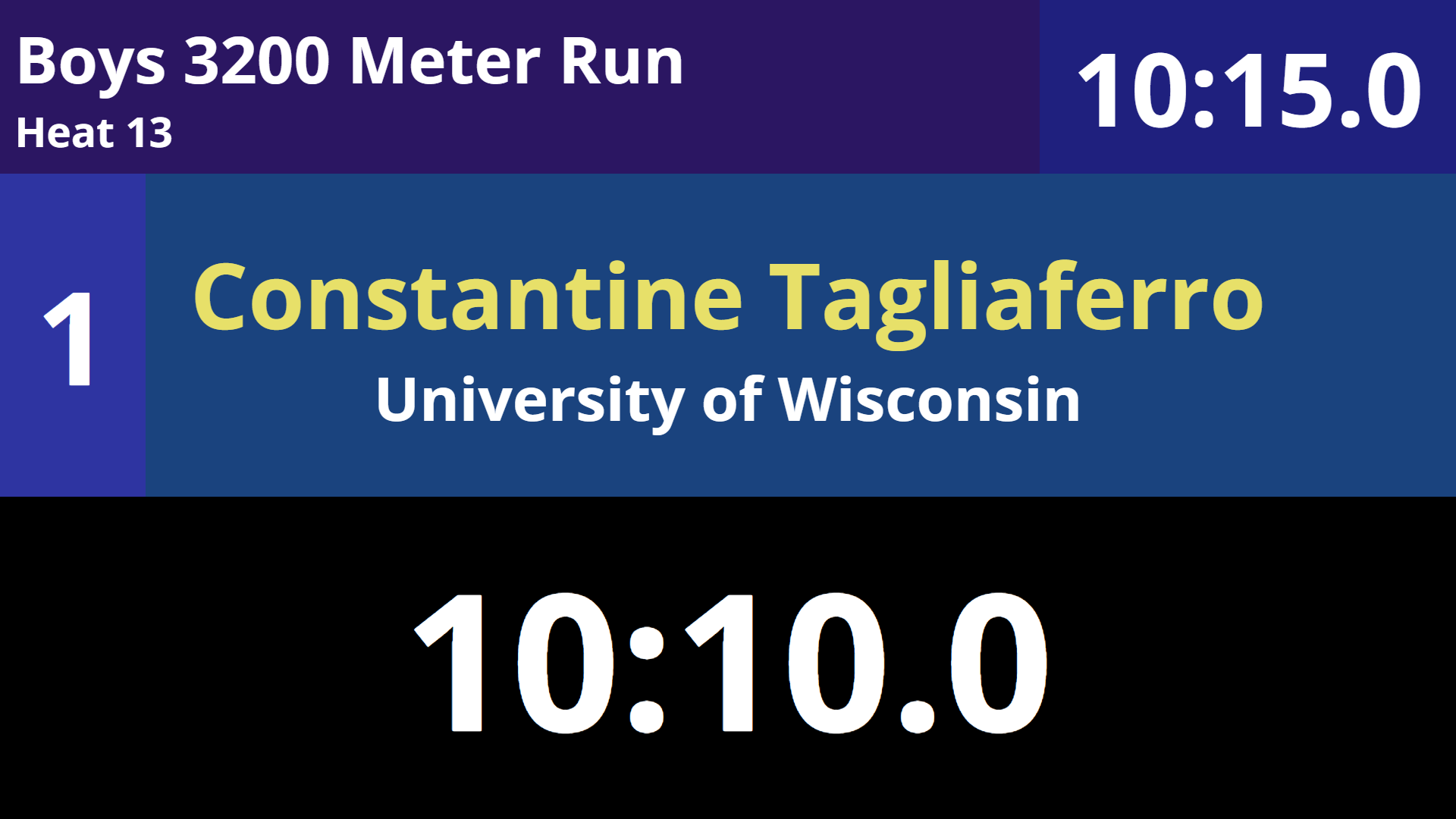

Live Track Single Result

Display time on the entire screen until athletes have splits or results. Then show one athlete at a time. Read More >

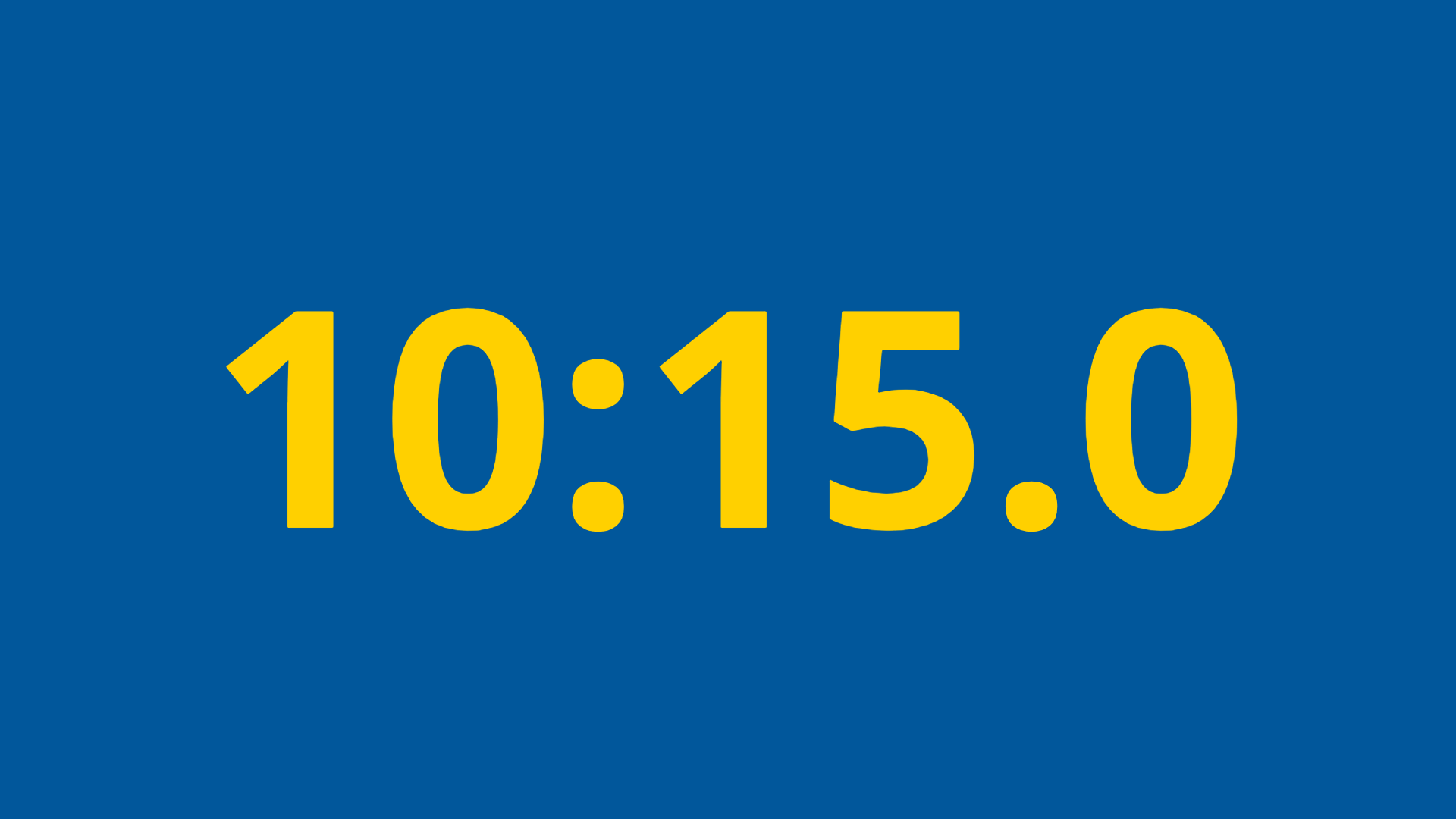

Live Time

Display time from FinishLynx. Read More >

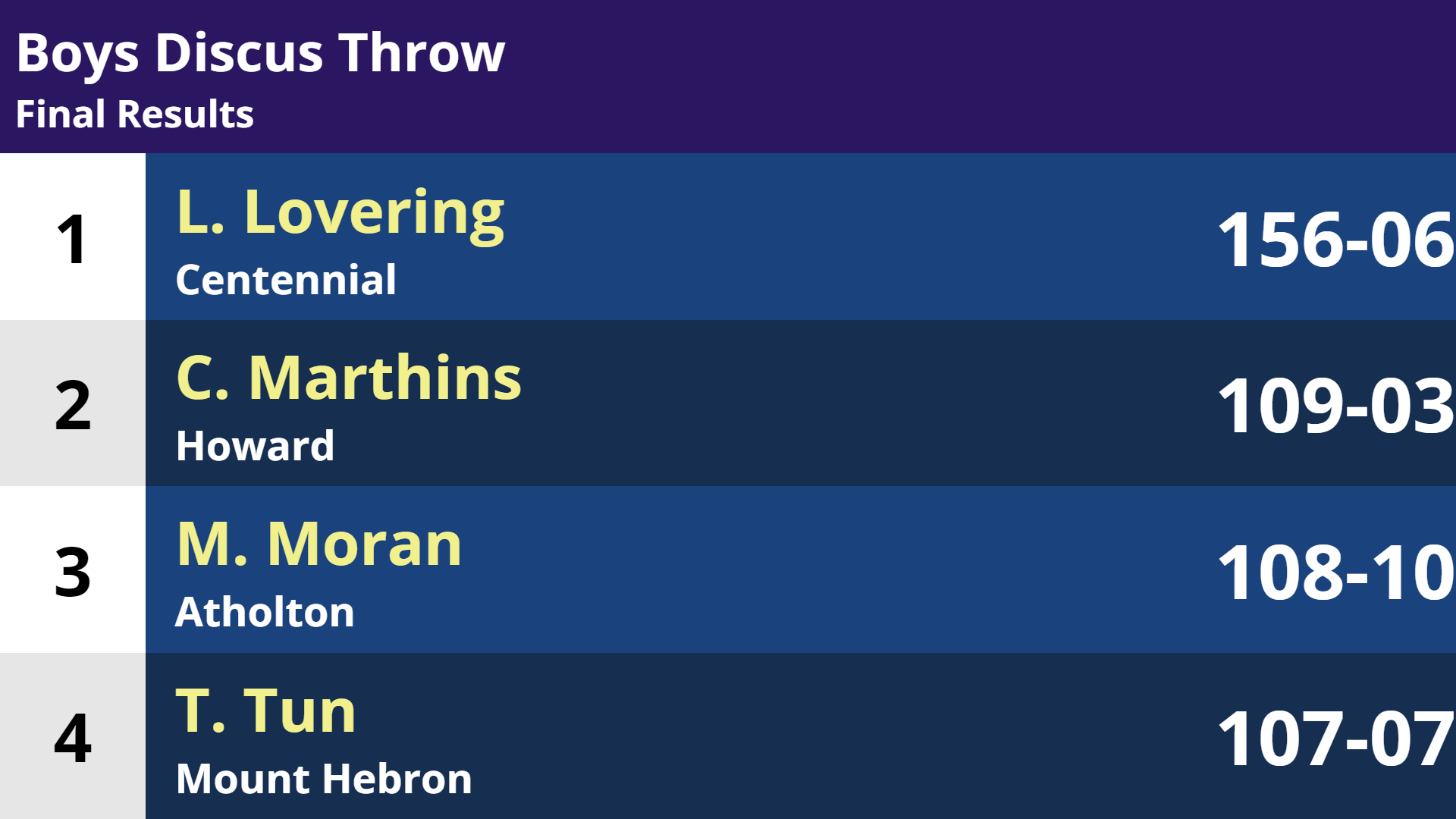

Compiled Standings

Display final results and team scores from AthleticLIVE. Read More >

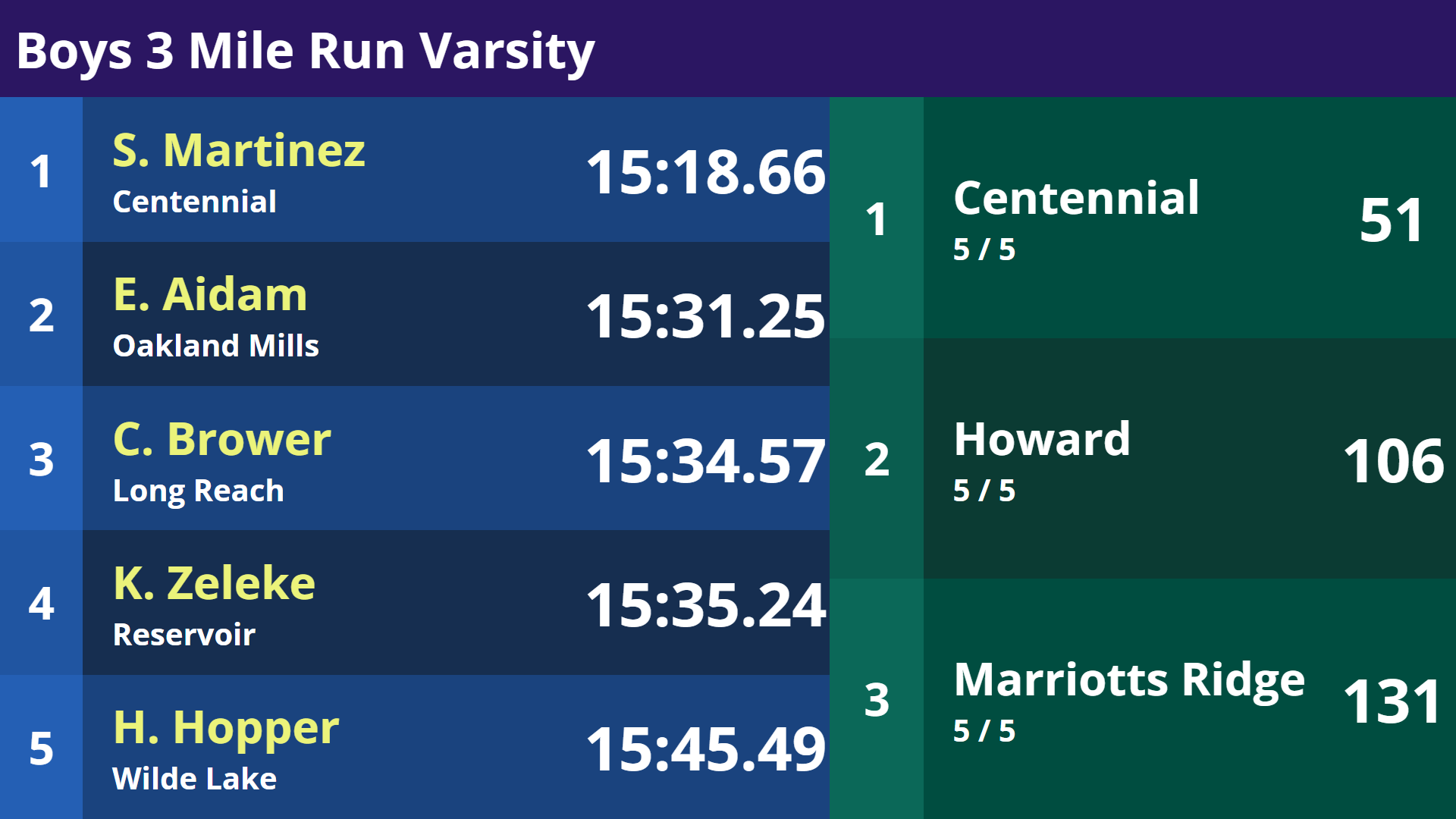

XC Summary

Display individual results and team scores for splits and/or the finish on a single screen. Read More >

Field Result

Display the person who is up now at any horizontal or vertical field event. Read More >

Individual Field Series

Show up to 6 marks at a time for the current athlete. Read More >

Copying board configurations between computers

Backup and Download in the Cloud

Backup

1. Click "Manage Configs" in the left menu.
2. Under "Backup Current Config", enter a unique key for this config, using lowercase letters and underscores only.
3. Click "Backup to Cloud". If it worked, the "Existing Configs" list will show the new config.

Download

1. On another copy of AthleticSB, login with the same account.
2. Click "Manage Configs" in the left menu.
3. Locate the config you backed up in the "Existing Configs" menu.
4. Click "Download to this Computer". If it worked, you should see all of your boards on the homepage.

Manual Copy

This is the old method and not recommended anymore.

All boards are stored in %userprofile%/AthleticSB/config.json. Copy that file to the %userprofile%/AthleticSB directory on another computer. Then open AthleticSB, and your boards will be there.

If %userprofile%/AthleticSB/ isn't accessible, try

Definitions

Board Types

1. Local Board: Opens as a browser window on your device. It can be a variable or a defined size. Can be fed by local data or online data
2. Online Board: Open at a URL. Available for any board that uses Online Data

Data Types

1. Local Data: If a board uses local data, that means it is powered by data over your local network. It does not rely on an internet connection to receive data.
2. Online Data: If a board uses online data, it relies on an internet connection and obtains data from AthleticLIVE.

License

You may use AthleticSB at a meet if you have purchased an AthleticLIVE credit for the same meet.
